GRP water tank Installstion

■ Installation

Step 1. Concreate Plint & Steel Foundation


Concreate Plint(standard)


● Wide : 300mm
● Height : 600mm ( Include Steel Skid)
● Space : Max 1m
● Outer Dimension : W+ 400mm
● Horizontal Degree : 1 / 500

■ Tank Height : 1M ~ 2M



■ Tank Height : 2.5M ~ 4M





Step 2.

Assembly of Bottom Panel Block

Step 3.
Setting of Bottom Block and Steel Skid Assembly of Base.

Step 4.
Assembly of Side Panel Block & Roof Panel Block

Step 5.
Connection Side Panel Block① to Bottom Panel Block & Corner Flame

Step 6.
Connection Side Panel Block②,③ to Bottom Panel Block

Step 7.
Connection Side Panel Block④ to Bottom Panel Block

Step 8.
Connection of Roof Panel to Side Panel Block

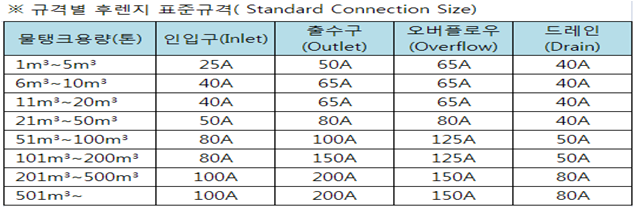

Step 9. Installation of stay bolt  Step 10 Installation of Internal Ladder and Roof support Pole   Step 11. Installation of other Accessories (Airvent, Fitting,External Access Ladder) Step 12. Complete ■Fitting The customer designates the size of socket for plumbing . ※ The Size of Flange ( JIS10K ) ※ The Size of Socket ■Caution   If you have any question , please send email here sjsales@snbgt.com www.snbgt.com
